Micro Controller Board

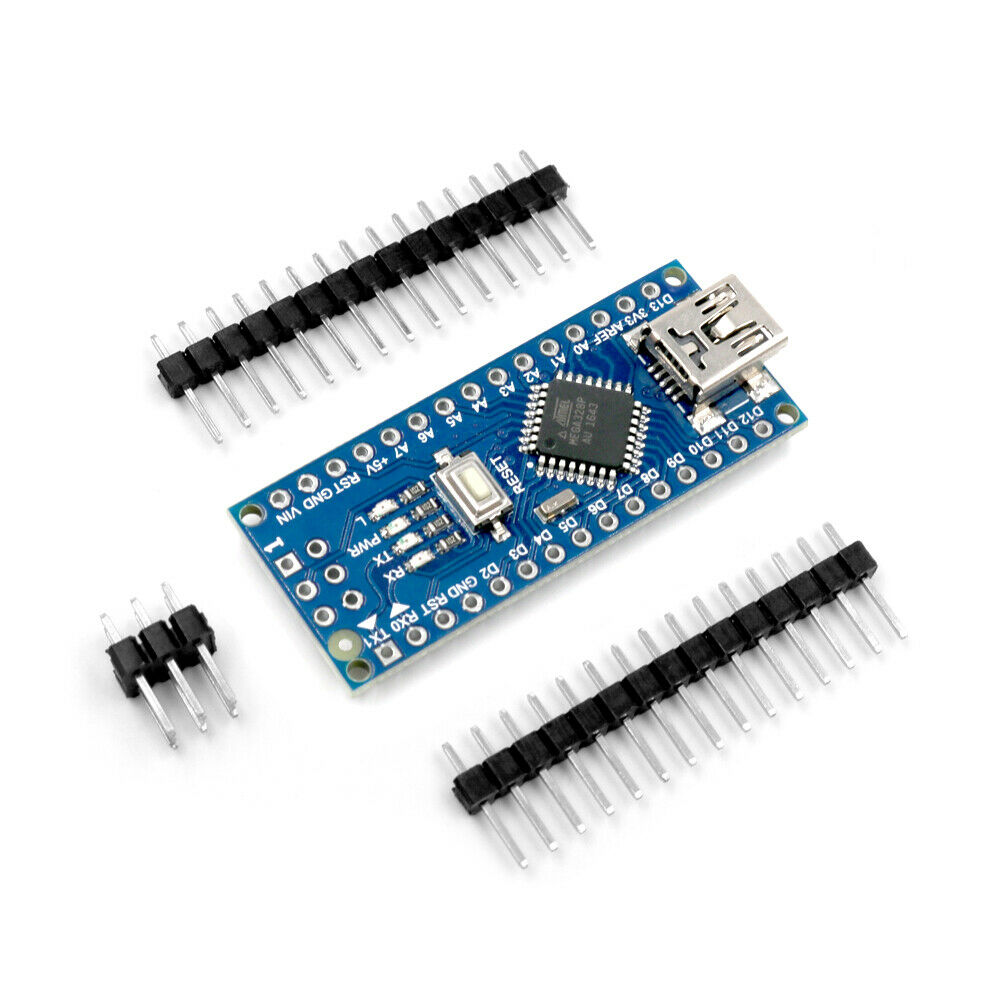

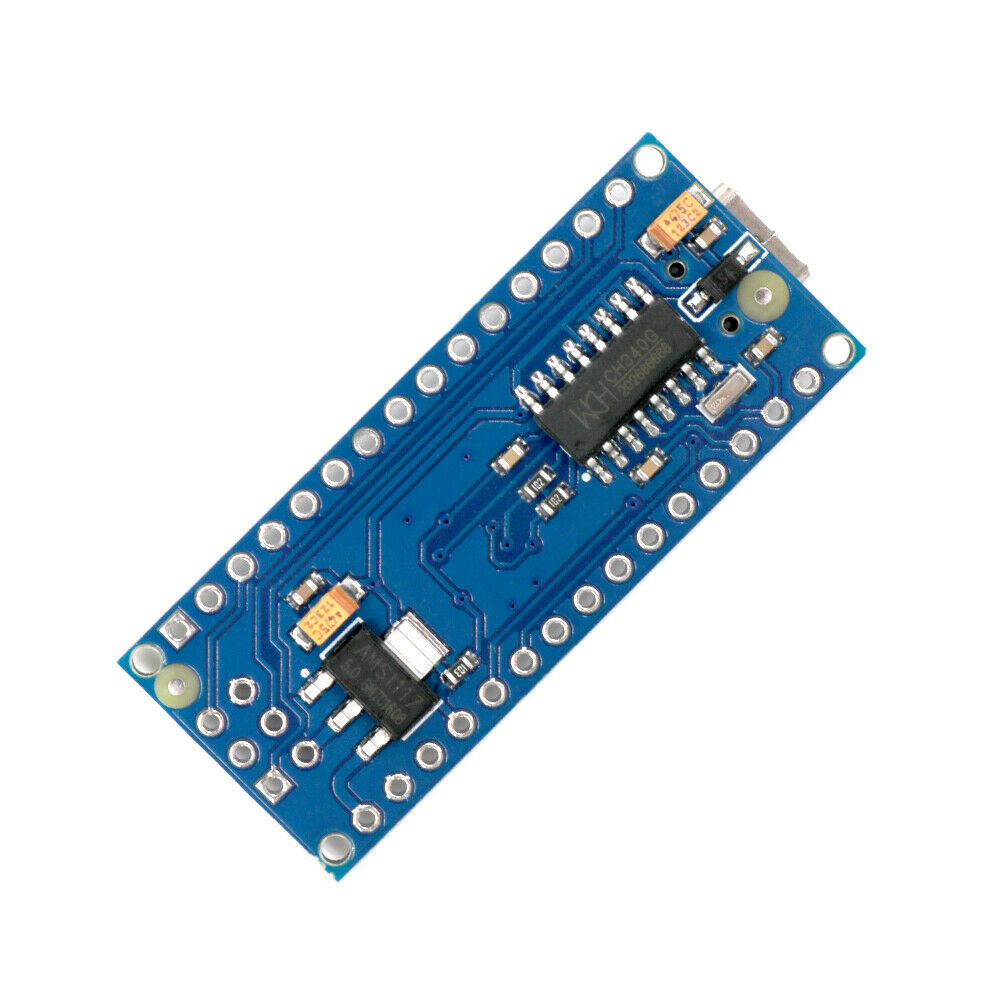

Micro Controller Board KitMicro Controller Board

Voodoofx Micro Controller

Original price was: $15.99.Current price is: $12.50.

Voodoo Micro Controller is a big bang for the buck. The system is 100% Arduino compatible & able to run multiple programs. This is a board only kit & requires soldering. Please pick your effect option when ordering.

NOTE: Any leds driven by micro controller will need a in line resistor to safely operate.

(BASIC) – Comes with a simple test program.

“Program Options”

(REACTOR FADE)

(RANDOM BLINK)

(NAV & STROBE)

(ENGINE THRUST)

(CHASER LOOP)

Required Software to make changes: ARDUINO IDE LINK

How to Videos: ARDUINO TUTORIALS

Introduction Video: VIDEO LINK



SKU: VMCB-1-1 Category: Tag:

Description

Voodoo Micro-Controller Specifications:
  • CH340G USB bus converter chip replaces the FT232RL
  • Operating voltage (logic level): 5V
  • 8 Analog input ports: A0-A7
  • 14 Digital input / output ports: TX,RX, D2-D13
  • 6 PWM ports: D3, D5, D6, D9, D10, D11
  • 1 pair of TTL level serial transceiver ports: RX/TX
  • Uses Atmel Atmega328P-AU MCU with bootloader installed
  • Supports USB download & power over mini-B usb connector
  • Recommended input voltage: 7-12 V DC on pin 30
  • Max input voltage limits 6V-20V
  • Supports ISP download
  • Supplied with connector pins
Package Includes:
  • 1 piece USB Voodoo Micro Controller Board V3.0 compatible with Ardunio Nano.

Additional information

Weight 2 oz
Dimensions 9 × 6 × 0.25 in
Pre-install

BASIC, REACTOR FADE, RANDOM BLINK, NAV & STROBE, ENGINE THRUST, CHASER LOOP
